Machines & Specialty Processes

custom solutions for any industry
custom turnkey solutions

System Design & Development

line-3-1

ProductsPg_2nd_tier_banner

Robotic design applications often require many of the technical disciplines in electronic product development such as embedded designs, wireless communications, motor drive, optical sensors, cables, thermal mitigation, and power supplies. Each of these applications requires a comprehensive understanding of motion control design including position sensing and orientation, movement, and system safety. At Cardinal Machine, we have expertise in each of these disciplines.

Examples of Our Machine Solutions

line-3-1

Gas-Fill-Machines2

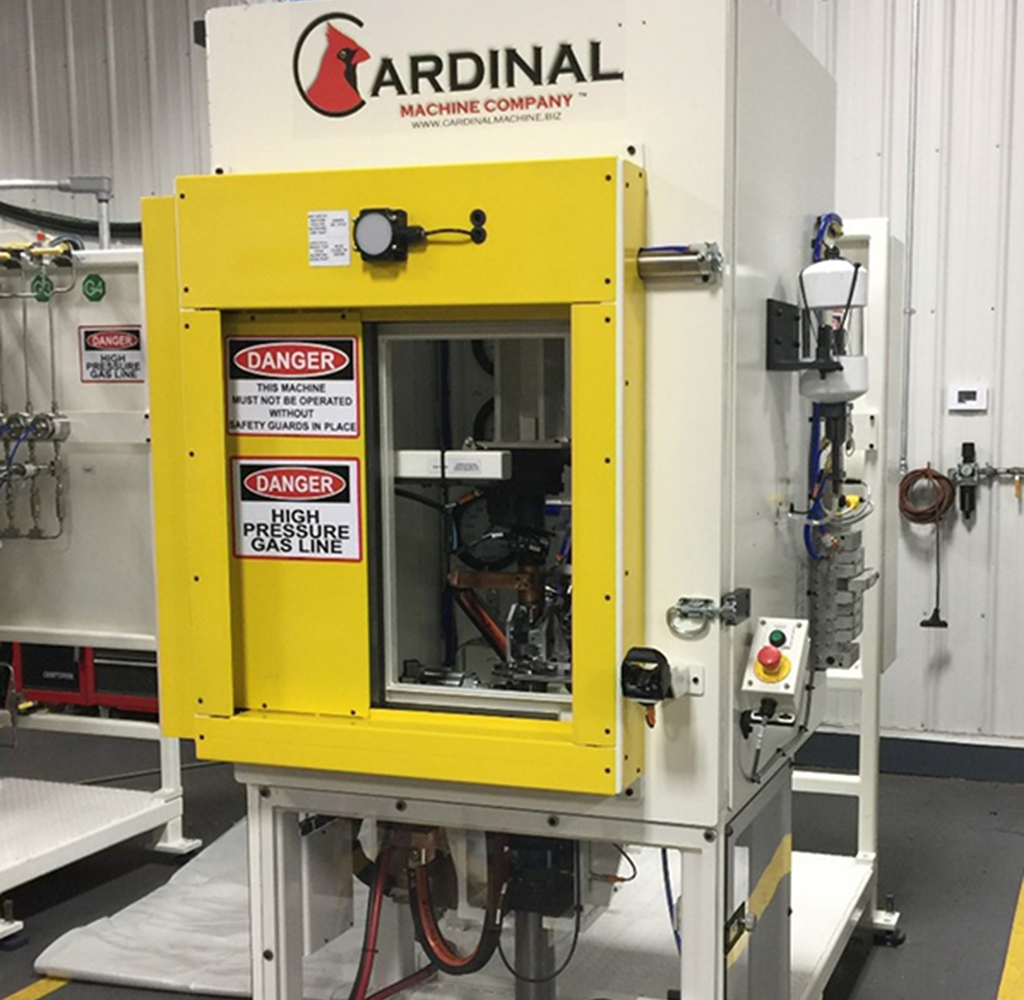

Gas Fill Machines



Developed over 20 years ago, initially for the ride control industry, our unique approach to the gas filling of stored gas products has made Cardinal Machine Company an industry leader in gas fill technology.



Currently multiple customers within ride control (shock absorbers and struts) and air bag inflator industries utilize Cardinal gas fill technology.  In simplest terms, the product is fixtured, filled, and resistance welded to seal the stored gas.  This is done at production speeds to a high degree of accuracy.



Our systems often include ancillary processes such as:

  • automatic load/unload
  • proofing (filling product above design pressure to test integrity)
  • post weighing (verifying fill accuracy via weight)
  • venting (creating an inert product from out-of-specification parts)

We have dozens of gas fill installations worldwide in varying configurations and for a multitude of different products.

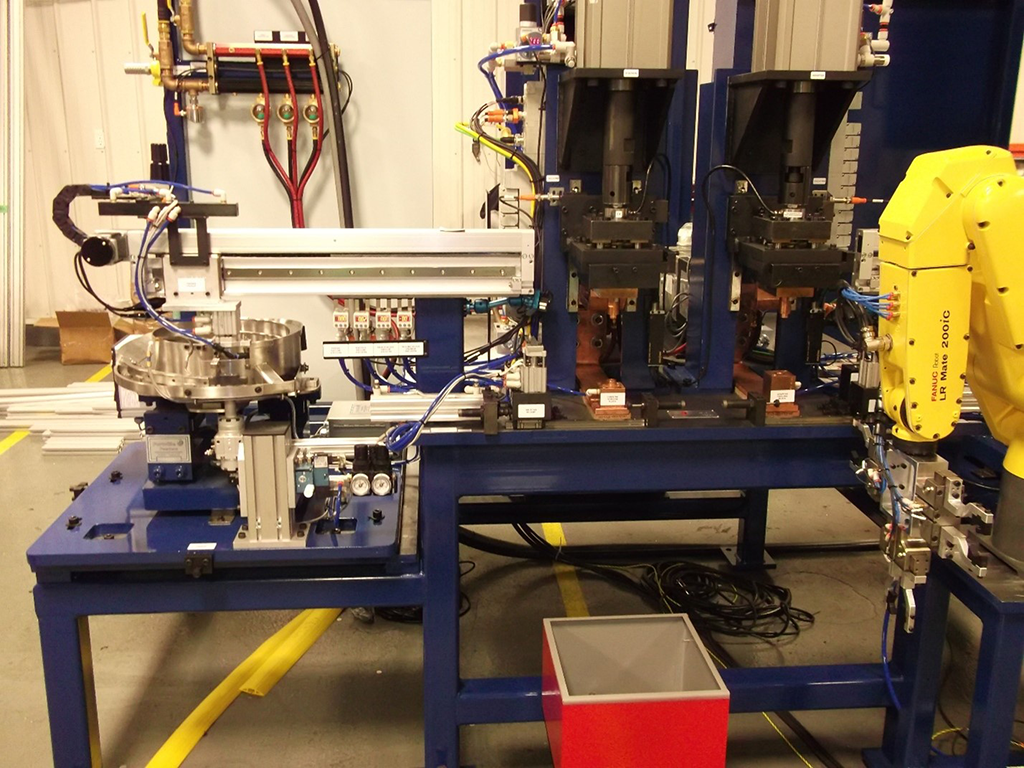

Resistance Welders



Since our earliest years of operation, Cardinal Machine Company has been designing and building custom resistance welding solutions.  We successfully utilize and integrate AC, DC mid-frequency, and capacitive discharge processes.



Regardless of your need, Cardinal Machine Company can provide a resistance welding solution.



A sampling of the type of equipment that we build would include:

  • Typical press welder type machines
  • Single or multi-station spot and/or projection welders (manual or auto load/unload)
  • Dial index type style machines utilizing resistance welding workstations
  • Robotic spot welding cells
Resistance-Welders
Arc-Welders

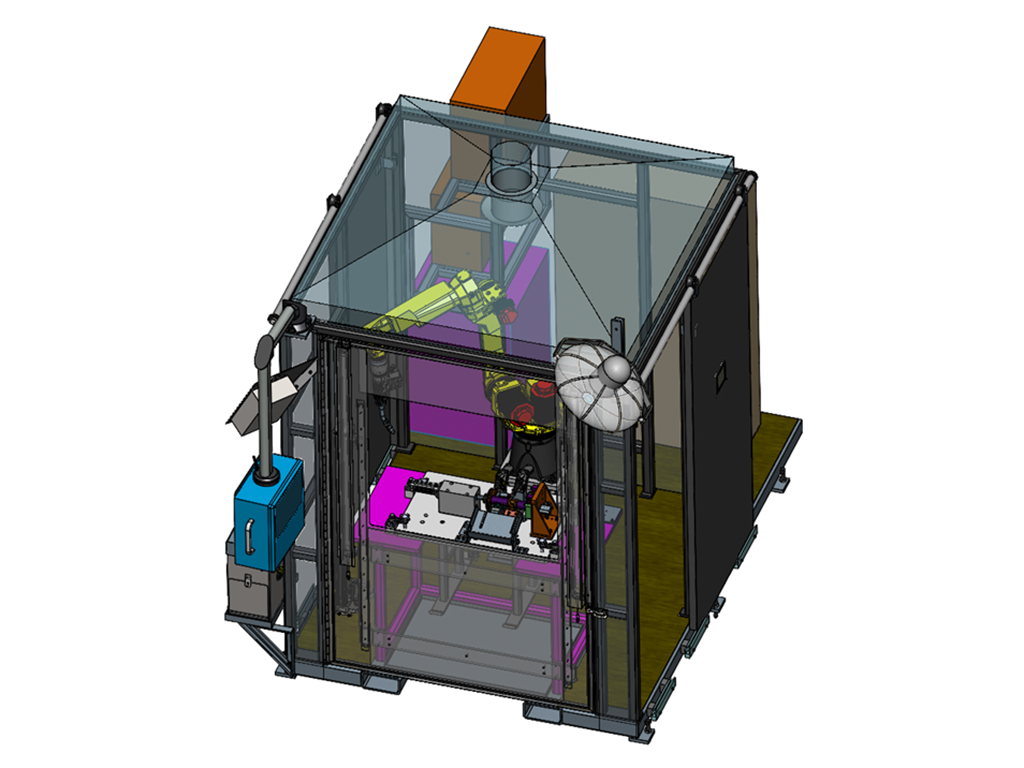

Arc Welders



Using primarily the GMAW (Mig) or PAW (Plasma) processes, Cardinal Machine Company’s custom welders can meet your manufacturing requirements.



Whether your part calls for spot, linear, or circumferential welding, we can provide the solution.  Depending on the application, either a fixed or moveable torch and/or part may be employed.



Additional features such as seam tracking, torch oscillation, and arc length control may be utilized to attain certain characteristics and provide required output.

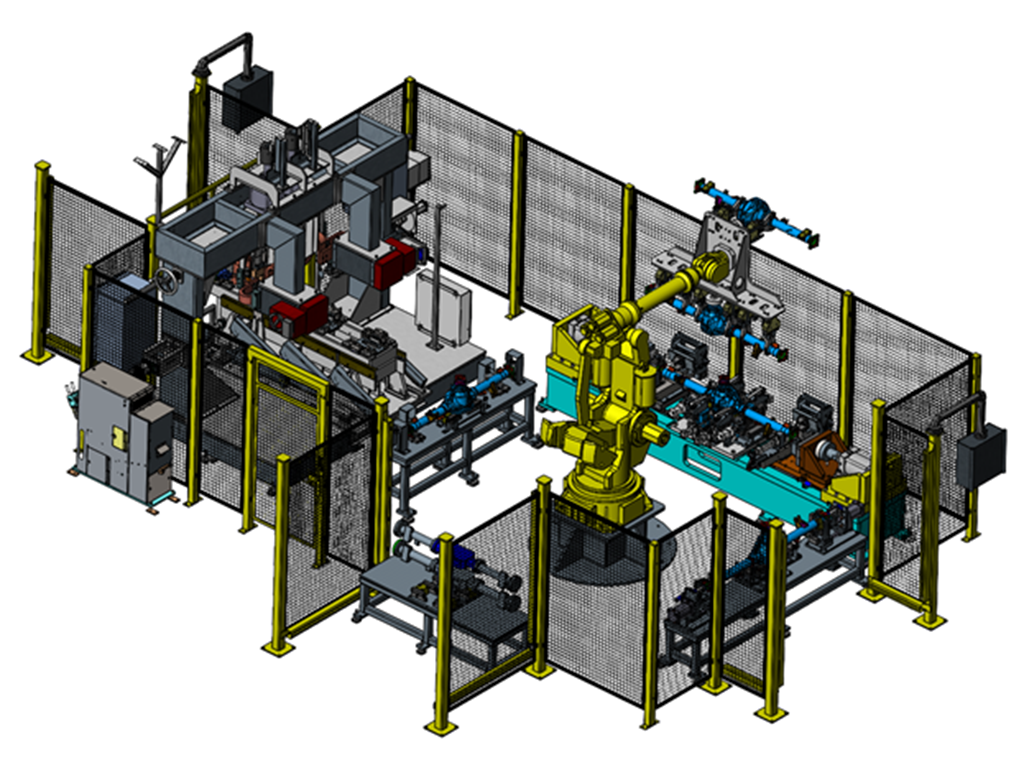

Robot Cells and Integration



Cardinal Machine Company routinely uses robots in a wide variety of manufacturing applications. We take pride in our simple and user-friendly approach to robot integration.



Whether your application calls for automatic assembly, material handling, resistance, GMAW (MIG), or PAW (Plasma) welding, we can provide a repeatable, user-friendly solution.



Additionally we offer our standard CMC-VS MIG welding cell as a safe, intuitive, and rapidly deployed cell for small to mid-sized assemblies.

Robot-Cells-and-Integration
SEEING IS BELIEVING

Our Machines in Action

line-3-1

Whether your process requires complex multi-station assembly lines, dial index machines, robotic cells, single station machines, or just a simple fixture, Cardinal Machine Company can meet your requirements. This video is proof.



Learn More

Unmatched Expertise & Service

Cardinal Is Your Best Choice for Robotic Machine and Specialty Process Development

line-3-1

The Cardinal engineering team uses the latest software and systems to design your needed solution. Why should you choose Cardinal? Because our process includes:

  • Our in-house fabrication, detail manufacturing and final assembly completes the build process.
  • We provide traditional on-site or virtual technology for the final runoff and buyoff processes.
  • We provide or coordinate crating, shipping, installation, and commissioning worldwide.
  • We offer our customers simple, reliable, maintainable, and durable solutions to the most complex manufacturing challenges.
What our customers say

Testimonials

line-3-1

A Partner You Can Rely On

Why Choose Cardinal?

line-3-1

We have been providing specialized industrial equipment and services to business and manufacturing since 1972. We welcome the challenge of providing simple and functional solutions to the most complex manufacturing, welding, and assembly problems. We strive for long-term, time-tested business relationships.
